MATRIX公司介紹：

意大利MATRIX公司是世界上知名的電磁閥及氣動產品生產企業，專業生產電磁閥、分氣閥、氣缸及系列氣動產品，在世界上具有很高的聲譽。
代表型號：820系列、850系列、860 PCM系列、720系列、750系列、630系列、EPR100系列。

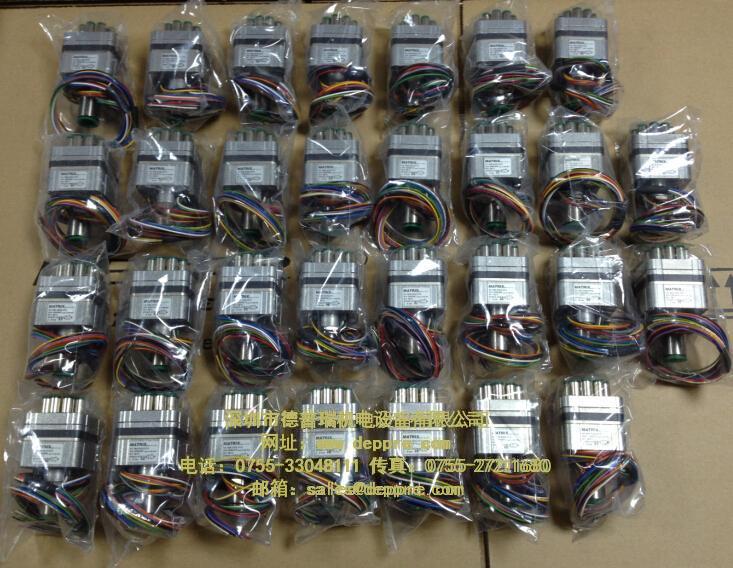

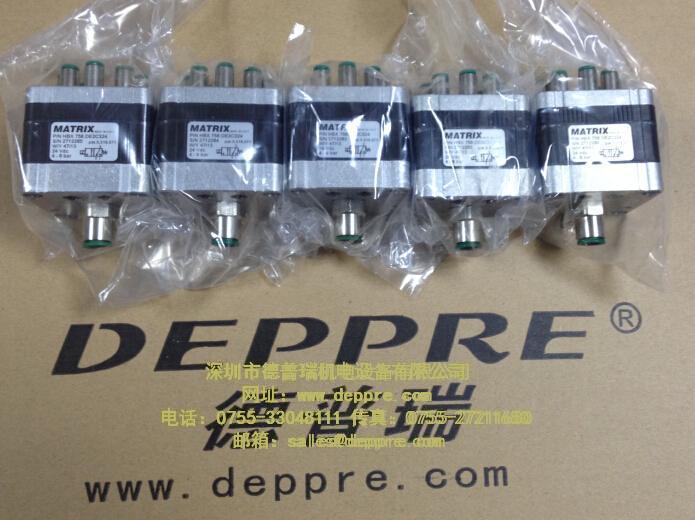

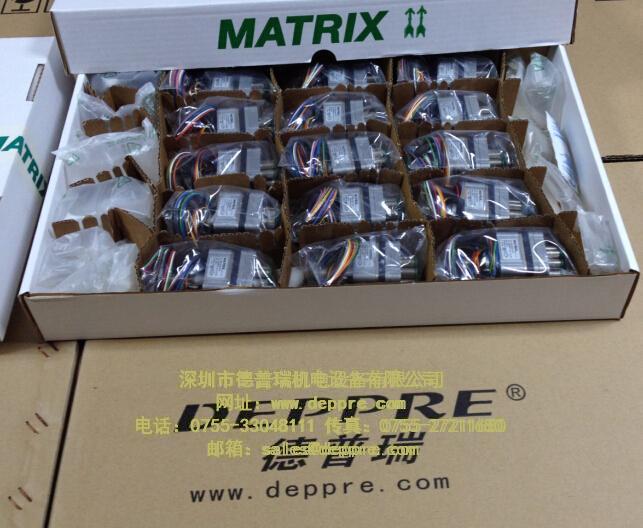

MATRIX電磁閥HMX758.8EXC3JJ-02
MATRIX電磁閥HBX758.8E1C324
MATRIX電磁閥HBX758.8E8C324
MATRIX電磁閥HBX758.DE2C324
MATRIX電磁閥MX721.1X0C224-H01
MATRIX電磁閥JMX721.102C3JJ
MATRIX電磁閥JMX721.102A3JJ

MATRIX分氣閥，MATRIX電磁閥，MATRIX閥門，MATRIX液壓閥

The SPR 1000 is a closed loop electronic pressure regulator with an integrated high performance volume booster (5000 Nl/min @ 6 bar power stage7, able to convert a variable analog or digital input signal (current, voltage, keypad, RS-232) into a proportiional pneumatic output and maintain with precision a required downstream pressure. Equipped with an 8 bit microcontroller, it can process signals and commands, carry out complex functions and easily interface with other control/monitor systems via serial RS-232, perfectly integrating in applications which had required more elaborate and expensive systems up till now. The compact and functional design, overall performances and reliability makes for an effortlrss integration in any advanced pneumatic system that requires an active component quuickly adaptable to any specific requirement. The input signal, which could be analog (0-5 V, 0-10 V, 4-20 mA) or digital (serial Rs-232, keypad/display), is processed by the microcontroller and converted into a proportional pressure output (0-7 bar or optional 0-12 bar) by using PWM (Pulse Width Modulation) controlled high-speed solenoid valves for feed and exhaust functions. An integrated pressure sensor continuously monitors the output pressure of the SPR 1000 providing a feedback to the controller that compares this value to the desired setpoint, which is set by the input signal. Thus any variation of the output pressure can be quickly and precisely compensated in order to maintain the requested downstream pressure. This closed loop system has a reaction time of less than 5 ms. In addition, the SPR 1000 may supply an analog output in proportion to the downstrea pressure.

The SPR 100 ia available in two basic versions:
? SPR 100A Equipped with analog/digital input interface (0-5 V, 0-10 V, 4-20 mA*, RS-232) and status leds.

? SPR 100D equipped with analog/digital input interface (0-5 V, 0-10 V, 4-20 mA*, RS-232), keypad/display user interface, status leds.


Pneumatic solenoid valve MATRIX mechatronics
MXPD 820, 2/2, NC, 180 Nl/min, 1 ms

Pneumatic solenoid valve MATRIX mechatronics
MXPD 720, 3/2, NC-NO, 100 Nl/min

Pneumatic solenoid valve MATRIX mechatronics
MXPD 840, 2/2, NC, 300 Nl/min, 1 ms

Pneumatic solenoid valve MATRIX mechatronics
MXPD 750, 2/2-3/2, NC-NO, 100÷700 Nl/min

Miniature 3-way pneumatic valve MATRIX mechatronics
MXPD 320, 3/2, NC-NO, 30 Nl/min, 200 Hz

Pneumatic solenoid valve MATRIX mechatronics
MXPD 890, 2/2, NC, 100÷1600 Nl/min, 1 ms

Pneumatic flow control valve MATRIX mechatronics
MXPD 860, 2/2, NC, PCM, 1-750 Nl/min

Electronic pressure regulator MATRIX mechatronics
MXPD EPR100, 0-5/10V, RS232, 60 NL/min

Electronic pressure regulator MATRIX mechatronics
MXPD EPR200/300/500, 0-5/10V, RS232, 200÷300÷500 Nl/min

Electronic pressure regulator MATRIX mechatronics
MXPD SPR1000, 5000 Nl/min, IP65, 0-5/10V, 4-20mA, RS232

Electronic fuel injection MATRIX mechatronics
MXAD HD, CNG, LPG

Electronic fuel injection MATRIX mechatronics
MXAD HS, CNG, LPG

Monitoring and control system MATRIX mechatronics
MXTD

Piezoelectric actuator MATRIX mechatronics
MXTD PZ, RS422

MATRIX國內專業供應商：

深圳德普瑞優價銷售MATRIX系列產品；
電話： 0755-27219112 / 32920955 / 32920956
郵箱：sales@deppre.com  網址：www.szdsyjy.com

“以上產品信息為德普瑞收集整理，轉載請注明來源”
